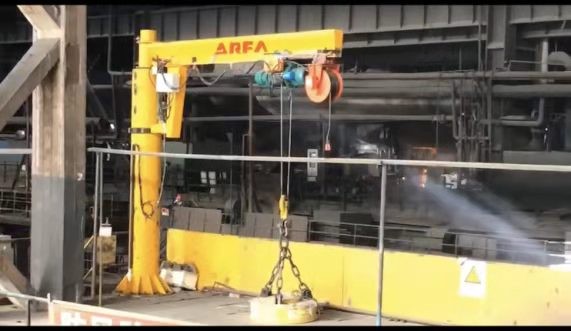

BZD Column-Mounted Jib Crane
Technical Specifications
| Parameter | Specification |
|---|---|
| Lifting Capacity | 0.25t / 0.5t / 1t / 2t / 3t / 5t |
| Slewing Angle | 180° / 270° / 340° / 360° (customizable) |
| Hoisting Mechanism | Electric hoist (wire rope or chain type) |
| Operation Mode | Manual / Electric slewing |
| Duty Class | Light to medium-duty |
| Installation Method | Ground-anchored with bolts |
| Ambient Temperature | -20℃ to +40℃ |
Key Advantages
-
Compact Design: Small footprint, can be mounted near walls or equipment
-
Flexible Rotation: Multiple slewing options for various working conditions
-
High Compatibility: Compatible with different types of electric hoists
-
Easy Maintenance: Simple structure, long service life
-
Quick Installation: No structural modification required, anchor bolts only
-
Wide Applications: Suitable for industrial lines, assembly, mold handling, and workshops
Applications
Perfect for light-duty lifting in machinery manufacturing, automotive assembly, mold processing, lab operations, warehouse handling, assembly lines, and docks—especially where space is limited or fixed-point lifting is frequent.
