AMPJ Rail-Mounted Container Gantry Crane
Product Overview

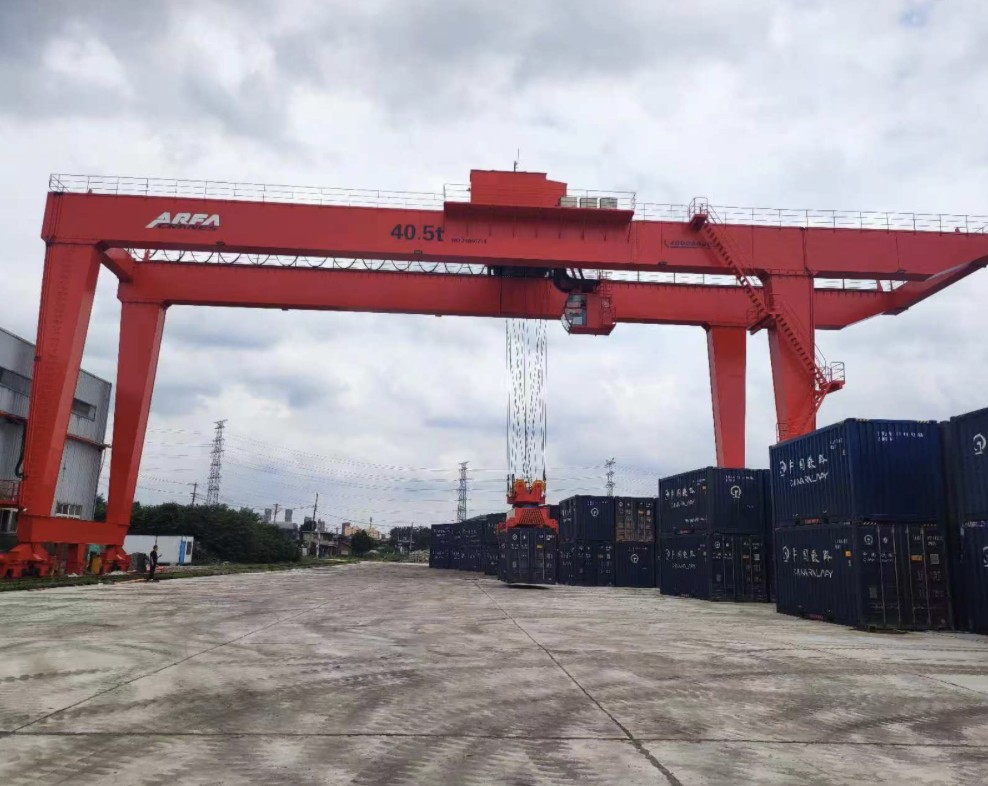

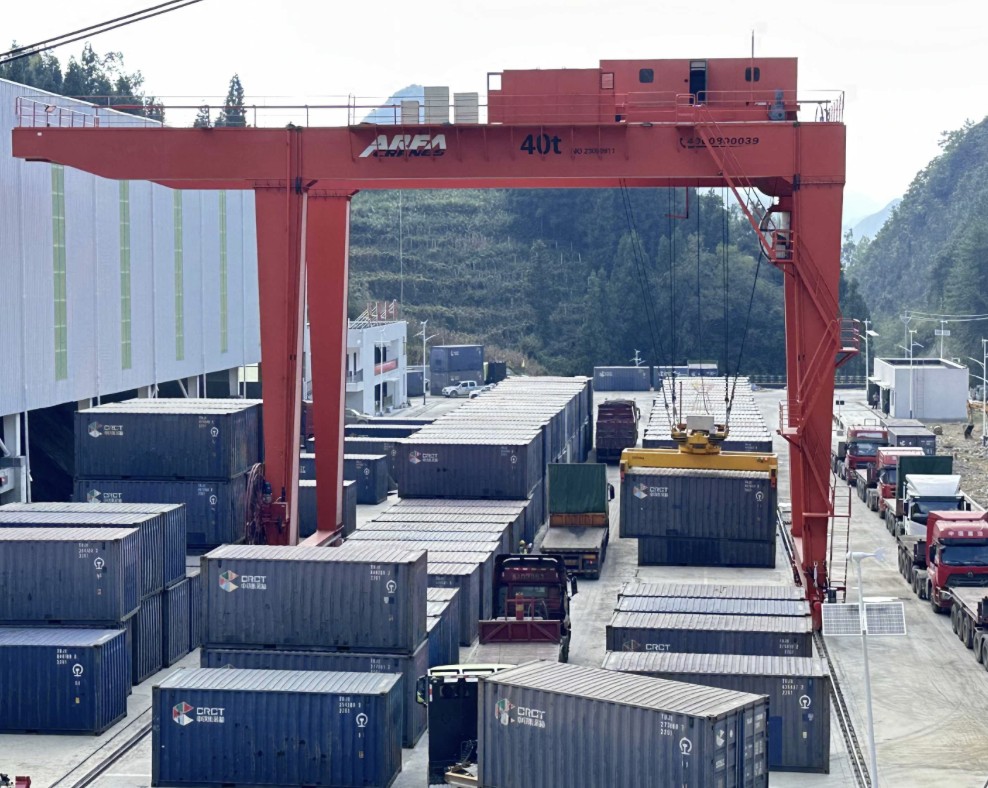

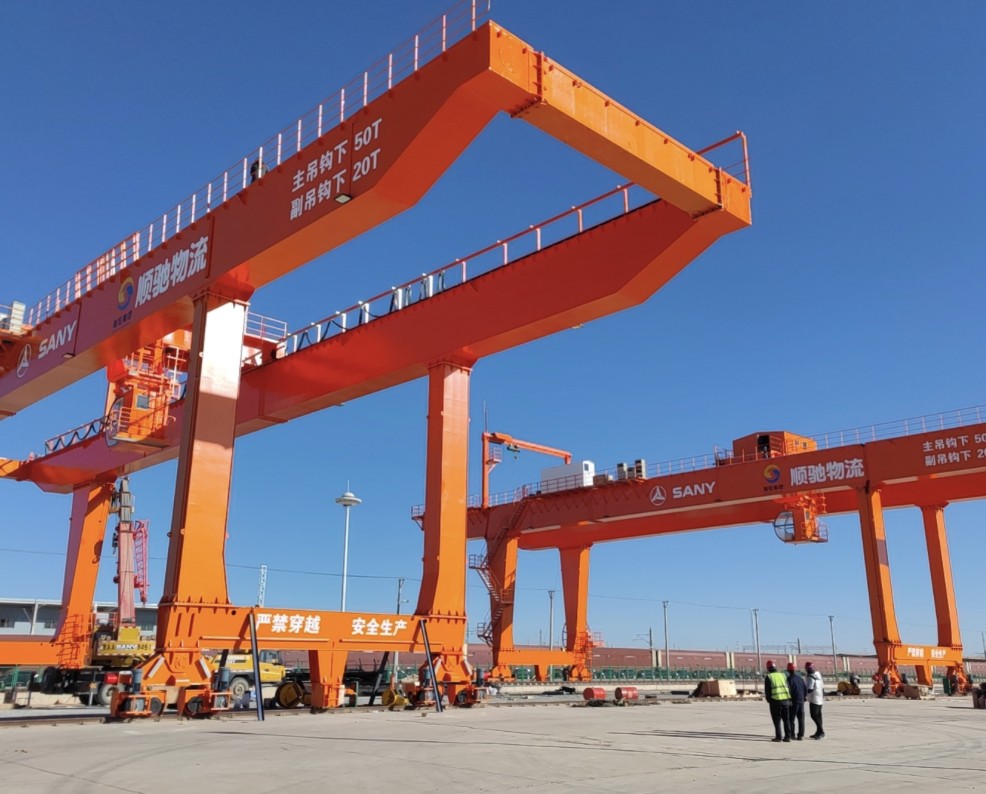

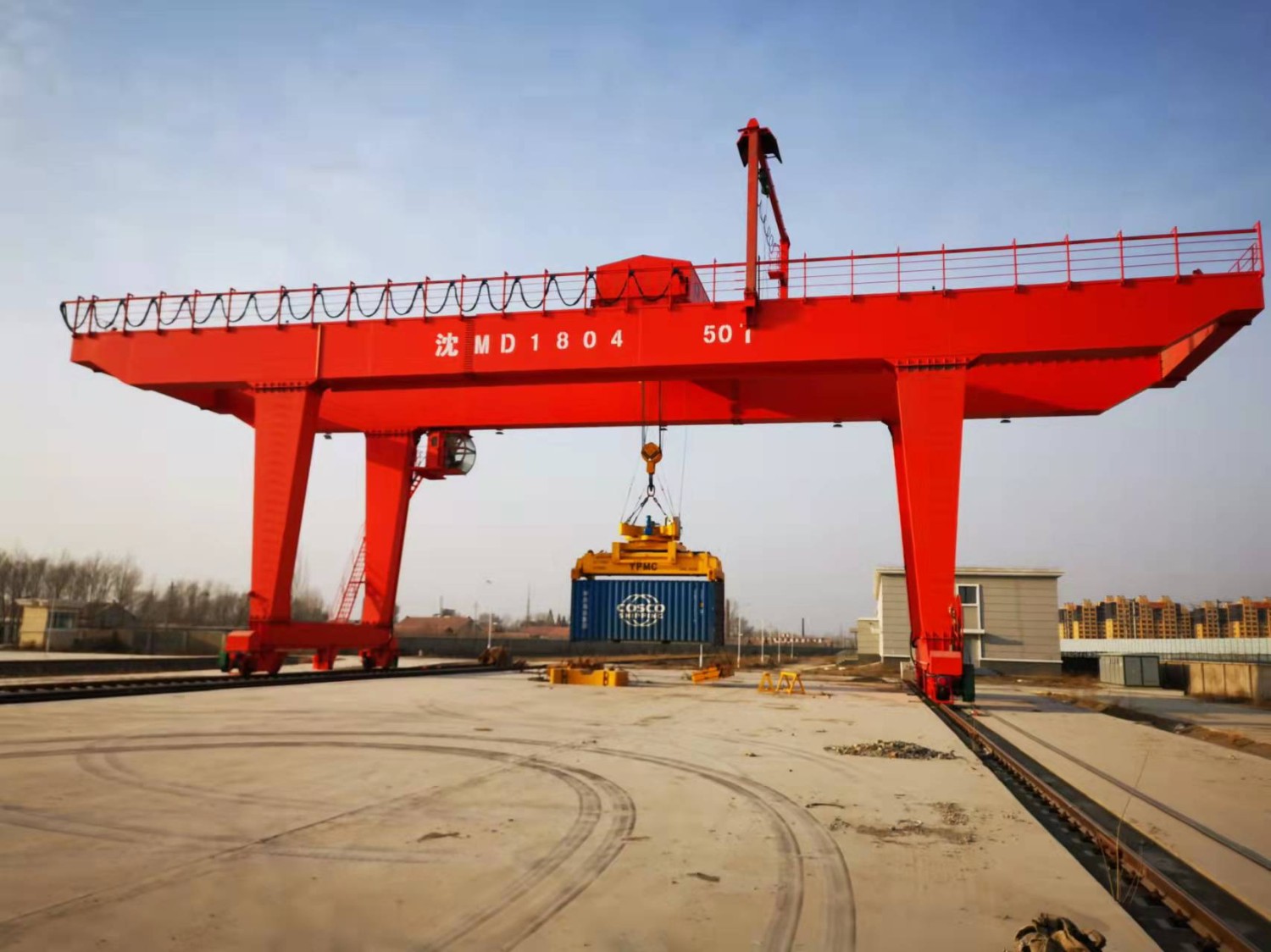

The AMPJ rail-mounted container gantry crane is a purpose-designed lifting solution for container handling and stacking in railway freight yards, logistics parks, port terminals, and container yards. With a robust structure, large span, and high lifting height, it is engineered for high-frequency and high-efficiency operations. As a key component in intelligent logistics systems, it ensures seamless container transfer and stacking.
Structural Components
The crane consists of dual main girders, rigid and flexible legs, trolley, spreader system, long-travel mechanism, and electrical control system. A spreader guide rail is installed on the top of the main beam for lateral movement. The crane runs on rails at the base for stable and accurate positioning. Control modes include cab operation, remote control, or fully automated control.
Technical Parameters (Customizable)
| Item | Specification |
|---|---|
| Lifting Capacity | 30t / 40t / 45t / 50t (customizable) |
| Spreader Fit | 6m and 12m standard containers |
| Lifting Height | 9m – 21m (customizable by stacking level) |
| Span | 18m – 35m (customizable) |
| Control Options | Cab control / Remote control / Automation |
Product Advantages
-
Purpose-built for container handling, with strong structure and high adaptability
-
Standardized spreader system supports both 6m and 12m containers
-
Accurate positioning and smooth lifting ensure high operational efficiency
-
Multiple control modes available, balancing safety and convenience
-
Modular design simplifies maintenance and adapts to various working conditions
Application Scenarios
Ideal for use in railway container yards, port terminals, logistics parks, and intelligent container transfer stations. It meets integrated handling needs including lifting, stacking, and transshipment of containers.
