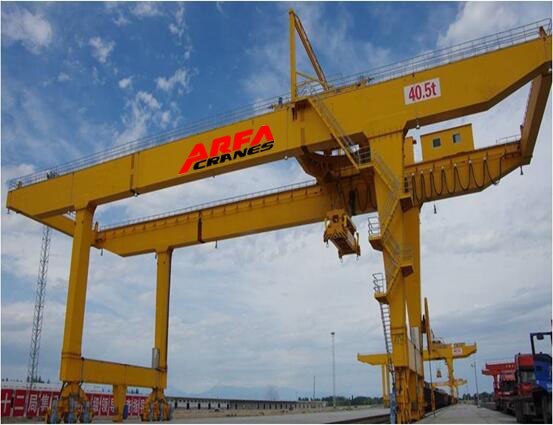

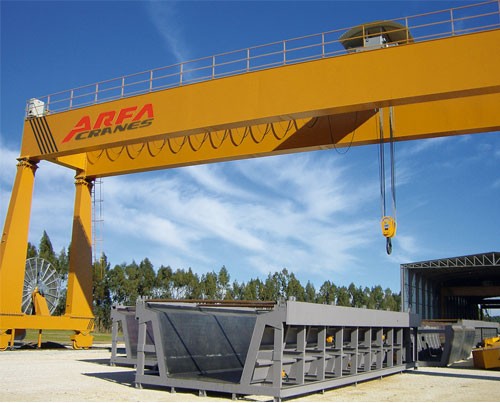

AM Double Girder Gantry Crane
Structural Composition
The equipment consists of five main parts: box-type bridge frame, long travel mechanism, trolley mechanism, hoisting mechanism, and electrical control system. Main and auxiliary hooks can operate independently or in sync. The electrical system is centrally arranged along the bridge walkway and operator’s cabin, with power supplied via a dedicated conductor system. All operations are controlled from within the cabin.
Technical Specifications (Customizable per project)
| Item | Specification |
|---|---|
| Structure Type | Double girder gantry structure with rigid–flexible leg combination |
| Material | High-quality Q345B steel + surface pre-treatment |
| Control Method | Centralized control via operator's cabin |
| Working Environment | Outdoor heavy-duty operations |
| Applications | Bulk handling of ore, limestone, coke, gravel, etc. |
Product Advantages
-
Robust structure with high load capacity and excellent wind resistance
-
Synchronized main and auxiliary hook design supports flipping and tilting operations
-
All load-bearing components use pre-treated Q345B steel, offering wear and corrosion resistance
-
Centralized operation ensures safety and reliability, customizable for various scenarios
-
Suitable for large-span, heavy-load outdoor lifting tasks
Application Scenarios

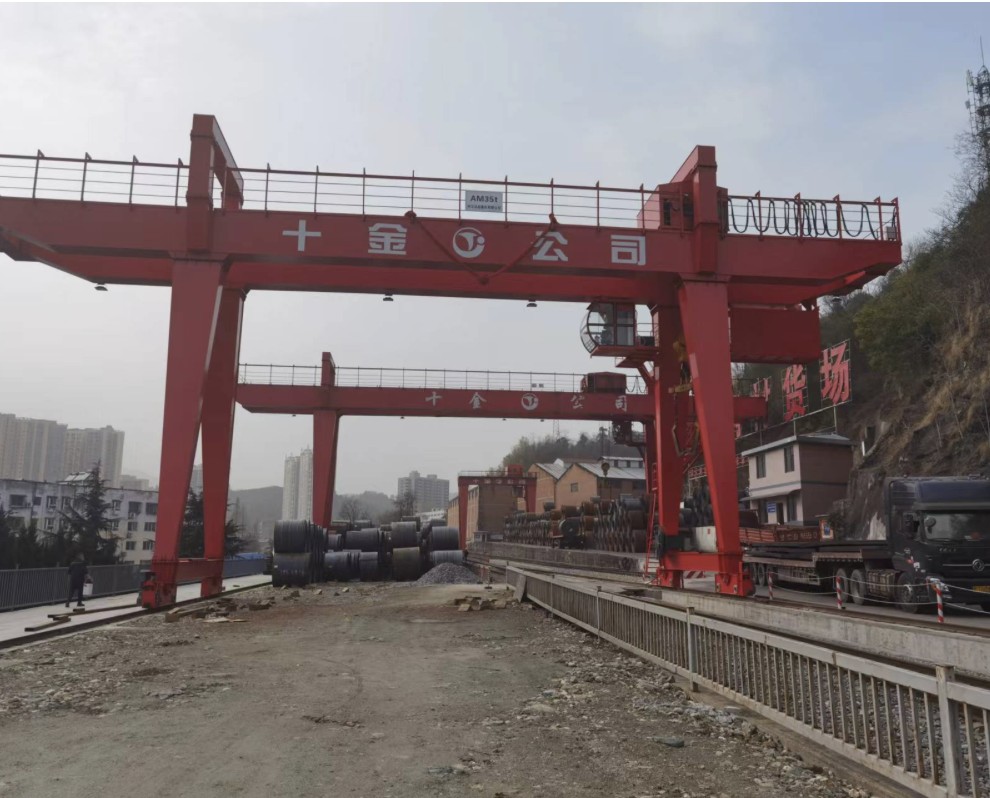

Widely used in open-air warehouses, material yards, mining areas, ports, and steel plants for heavy-duty lifting tasks—especially ideal for handling bulk materials such as ore, gravel, and coke.
